Get a better sense of your project cost and materials.


Redwood Composite Horizontal Semi-Privacy Fence Panel with 1-Inch Gaps — 6 ft W × 6 ft H - In-Ground

Style #:

WPH/G10RD10-72X72-IG

Modern Yard™ uses ten Redwood boards with 1-inch openings in this semi privacy composite fence. Spacers hold the horizontal rows between top and bottom rails, with Private Black framing around the nominal 6 × 6 ft section.

Redwood WPC blends natural wood fibers with recycled plastic. Its board material resists moisture. Board faces need no routine painting, staining or sealing.

Clean these surfaces with mild soap and water and a soft brush or cloth. Avoid harsh chemicals and abrasive tools on the Redwood faces. Powder-coated galvanized steel posts and aluminum rails have their own care instructions.

Count ten boards for each section in your planned run of fence panels. Buy Redwood in four-board packs, and include the 1-inch spacers with the framing products. Compare the semi privacy fence selection before ordering. Use the horizontal composite fence system to plan connected sections and shared posts.

  • Modern Yard™ uses ten Redwood boards with 1-inch openings in this semi privacy composite fence. Spacers hold the horizontal rows between top and bottom rails, with Private Black framing around the nominal 6 × 6 ft section.

    Redwood WPC blends natural wood fibers with recycled plastic. Its board material resists moisture. Board faces need no routine painting, staining or sealing.

    Clean these surfaces with mild soap and water and a soft brush or cloth. Avoid harsh chemicals and abrasive tools on the Redwood faces. Powder-coated galvanized steel posts and aluminum rails have their own care instructions.

    Count ten boards for each section in your planned run of fence panels. Buy Redwood in four-board packs, and include the 1-inch spacers with the framing products. Compare the semi privacy fence selection before ordering. Use the horizontal composite fence system to plan connected sections and shared posts.

  • Engineering Dimensions

    Nominal size (width × height): 6 × 6 ft.

    Mounting Type: In-Ground.

    Fence height: 73 inches.

    Gap below the fence: 0 inches.

    Post spacing (center to center): 71½ inches.

    Clear opening between posts: approximately 68¼ inches.

    Post height above ground: 74 inches, excluding the post cap.

    Post depth below ground: 24 inches.

    Concrete footing width: 12 inches min.

    Parts and Materials

    Standard Post Cap: powder-coated aluminum.

    98-inch Steel Post: powder-coated galvanized steel.

    3/4" U-Channel Rubber Strip: PVC (polyvinyl chloride).

    Top Rail: powder-coated aluminum.

    Bottom Rail: powder-coated aluminum.

    Horizontal Connector: aluminum.

    #8 x 3/4" ST Screw: 410 stainless steel.

    Composite Fence Board: wood-plastic composite (WPC).

    Groove Cover: powder-coated aluminum.

    1-inch Composite Spacer: powder-coated aluminum.

    1-inch Groove Cover: powder-coated aluminum.

    • Ten Redwood boards form the horizontal semi privacy infill.
    • Spacers keep 1-inch gaps open between the Redwood boards.
    • The ten-board Redwood infill uses moisture-resistant composite.
    • Redwood composite faces need no routine stain or sealant.
  • Limited warranty periods (residential / commercial use):

    • Structural defects in Redwood boards and covered metal fence parts: up to 25 / 10 years.
    • Covered Redwood board color changes: up to 25 / 10 years.
    • Coastal metal coating defects: up to 5 / 3 years.
    • Non-coastal metal coating defects: up to 15 / 10 years.
    • Covered metal finish fading, all locations: up to 8 / 5 years.

    For metal coating coverage, use the nearest shoreline of an ocean, sea or saltwater bay. Salt or brackish tidal estuaries also count. Measure in a straight line from the installed part. A distance of 10 miles or less is coastal; farther away is non-coastal.

    Qualifying defects under normal use must meet the written terms, including color and coating claim conditions. Metal coverage applies only to covered parts and eligible factory finishes.

    Normal airborne coastal salt and salt spray alone do not exclude qualifying coating claims. The metal warranty excludes direct saltwater immersion or splash damage.

    Remaining coverage transfers with property ownership. Products must stay at the original site. Keep records of the products and original purchase date. Transfer or replacement does not restart coverage.

    For approved claims, Modern Yard refunds or replaces defective boards or parts. The original net purchase price determines the amount. The amount drops over time under the warranty schedule.

    Metal coating compensation is 100% in the term’s first half, 50% in the second. Other claims follow separate schedules.

    We do not pay for labor, installation, removal, reinstallation, freight or shipping. This changes if required by law or if Modern Yard expressly agrees in writing.

    Email service@mymodernyard.com with purchase records, photos, product details and the issue. Expect a decision or next steps within 7–14 business days. Contact Modern Yard for full warranty terms.

Related Components

Modern Yard 98-inch galvanized steel fence post with compatible fence system components

Modern Yard™ 98-Inches Steel Post

Modern Yard horizontal fence rail set with matching rail components on a white background

Modern Yard™ Horizontal Fence Rail Set

Modern Yard Redwood composite fence board with wood-look finish on a white background

Modern Yard™ Redwood Fence Board (4-Pack)

Modern Yard 1-inch spacer for horizontal fence installation

Modern Yard™ Accessory – 1-Inch Spacer for Horizontal Fence (40-Pack)

Imagine Your Future Fence

Installation Guides

Installation Manual

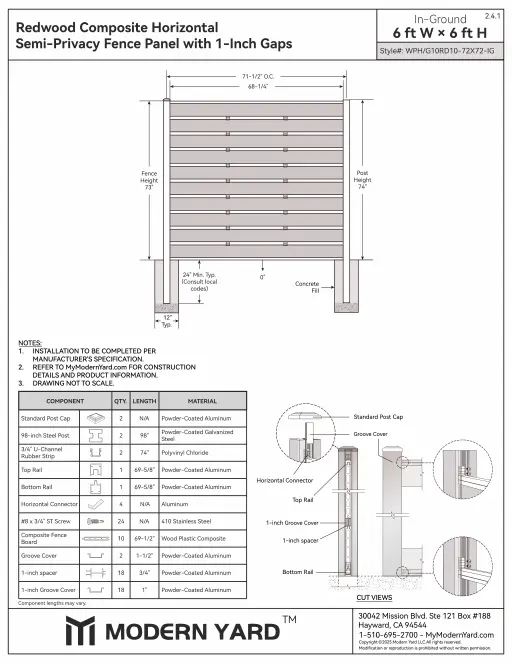

​Technical Drawing


Frequently Asked Questions

The ten-board layout leaves 1-inch openings between boards. Twelve joined boards fill the closed full privacy version at this nominal size.

The 1-inch measurement is between boards. This design's listed gap below the fence is 0 inches; the two dimensions are separate.

A Redwood pack supplies four composite boards. This section also needs steel posts, the horizontal rail set and 1-inch spacers. Include each product in the order for the ten-board assembly.
