Question 1

1. What is a composite gate?

Accepted Answer

A composite gate combines low-maintenance composite boards with a durable structural frame. Modern Yard composite gates use a fully welded aluminum frame with composite board infill.

Question 2

2. What are the benefits of a Modern Yard composite gate?

Accepted Answer

A Modern Yard composite gate offers several important benefits:Strong construction: The aluminum gate frame is fully welded rather than assembled from separate pieces, creating a strong and stable structure.Lightweight frame: Aluminum makes the gate lighter and easier to operate than a comparable steel gate.Coordinated design: The composite infill boards can be changed to coordinate with the color and style of your fence.Simplified installation: The biggest benefit is the easy-to-install gate system.
Building a traditional gate is often one of the most difficult and time-consuming parts of a fence project, even for an experienced contractor. Modern Yard simplifies the process with a fully welded gate frame, composite infill boards, specially designed hinges for attaching the gate to the post, and a pre-drilled opening for the lock. Install the infill boards, attach the gate to the post, and add the lock—without having to build a gate from individual components.

Question 3

3. Is there a matching composite gate?

Accepted Answer

Yes. Modern Yard composite gate is designed to coordinate with Modern Yard composite fencing. Matching composite board colors can be used to create a consistent appearance.

Question 4

4. What composite board colors are available for Modern Yard gates?

Accepted Answer

Modern Yard composite gates are available in the composite board colors shown on our website. Additional colors may be available by special order.

Question 5

5. Can composite boards be installed horizontally or vertically in a gate frame?

Accepted Answer

Yes. The composite boards within a Modern Yard gate frame can be installed horizontally or vertically. You can also incorporate decorative panels or combine composite boards in different colors to create a wide variety of unique gate designs.

Question 6

6. Is the Modern Yard composite gate more durable than a wood gate?

Accepted Answer

Composite boards do not rot, splinter, or require the regular painting and staining associated with wood. The fully welded aluminum gate frame also helps the gate maintain its shape over time.

Question 7

7. Does a composite gate expand and contract with temperature changes?

Accepted Answer

Yes. Like other wood-plastic composite products, the boards may expand and contract slightly as temperatures change. Following the required installation spacing allows room for this natural movement.

Question 8

8. Is the Modern Yard composite gate fire-resistant?

Accepted Answer

No. Modern Yard composite boards contain wood powder and plastic, and their surface coating does not contain flame-retardant additives. The Modern Yard Composite Gate System is therefore not classified as noncombustible or fire-resistant.For projects where fire resistance is a primary requirement, explore the Modern Yard FireGuard™ and Modern Yard Line™ Steel Fence and Gate Systems.

Question 9

9. What sizes are available for Modern Yard composite gates?

Accepted Answer

Modern Yard offers the following standard composite gate sizes:Large single gate: 71 in. high × 42 in. wideSmall single gate: 42 in. high × 42 in. wideLarge double gate: 71 in. high × 84-1/4 in. wideSmall double gate: 42 in. high × 84-1/4 in. wide
Custom gate-frame sizes are not currently available.

Question 10

10. Can a Modern Yard composite gate be installed on a slope?

Accepted Answer

A composite gate must remain properly aligned and have sufficient ground clearance to open and close safely. For sloped locations, the gate posts, opening direction, and ground clearance must be evaluated based on the site conditions.Consult an experienced installer before installation to determine whether the selected gate configuration is suitable for the slope.

Question 11

11. Do I have to install the crossbeam above the gate?

Accepted Answer

Yes. The crossbeam is an important part of the gate installation and should not be omitted.The Modern Yard gate frame has a fully welded aluminum structure designed to maintain its shape. However, the distance between the two gate posts may change over time if the posts move, settle, or were not installed correctly.The crossbeam helps stabilize the two gate posts and maintain the correct distance between them. This helps preserve proper gate alignment and allows the gate and lock to continue opening, closing, and operating correctly over time.

Question 12

12. Does the Modern Yard composite gate come with a lock?

Accepted Answer

The Modern Yard Mechanical Combination Lock is available separately and is designed to fit the pre-drilled lock opening in the Modern Yard gate frame. When requesting a quote, confirm that the lock is included in your material list.

Question 13

13. What is a mechanical combination lock?

Accepted Answer

A mechanical combination lock is a keyless lock that uses a numerical passcode instead of a traditional key. It operates mechanically, so it does not require batteries, electricity, wiring, or Wi-Fi.The Modern Yard Mechanical Combination Lock is made from 304 stainless steel for outdoor use and features a changeable passcode. It is designed to fit the pre-drilled lock opening in the Modern Yard gate frame.

Question 14

14. Can I use the Modern Yard mechanical combination lock without setting a passcode?

Accepted Answer

No. A passcode-free operating mode must be configured during manufacturing. All mechanical combination locks currently offered by Modern Yard require a passcode for normal locking and unlocking.

Question 15

15. Why has my gate lock become difficult to open or close?

Accepted Answer

In many cases, difficulty opening or closing the lock is caused by the gate latch and keeper becoming misaligned rather than by a problem with the lock itself.For example, if the gate is installed before the concrete surrounding the posts has fully cured, the weight of the gate may gradually pull the gate-side post out of alignment. Ground movement, insufficient post support, or posts that were not installed completely plumb may also affect alignment over time. When the latch and keeper are no longer level, the gate may become difficult to open, close, or lock.Check that both gate posts remain plumb and that the latch is properly aligned with the keeper. Contact your installer if the posts or gate require adjustment.

Question 16

16. Is it easy to change the passcode on the mechanical combination lock?

Accepted Answer

Yes. The passcode can be changed by following the required steps. A step-by-step instructional video is available in the Resources section of our website: [Link].

Question 17

17. What should I do if the gate latch does not line up with the keeper?

Accepted Answer

First, check whether both gate posts remain plumb and whether the gate frame is level. Also inspect the hinges and confirm that the gate has not shifted or settled.Do not force the gate closed or enlarge the keeper opening before identifying the cause of the misalignment. Contact the original installer if the posts, hinges, gate frame, or latch require adjustment.

Question 18

18. Can I install a keyed lock on a Modern Yard gate frame?

Accepted Answer

Yes, provided that the lock body, mounting dimensions, and required openings are compatible with the pre-drilled lock opening in the Modern Yard gate frame.Because third-party locks vary in size and design, confirm all dimensions and installation requirements before purchasing or modifying the gate frame. Modern Yard cannot guarantee that every keyed lock will fit.

Question 19

19. Does the inactive leaf of a double gate include a lock or handle?

Accepted Answer

The inactive leaf of the large double gate includes a matching dummy lock for a balanced, finished appearance. It is also equipped with a drop rod that secures the inactive gate leaf to the ground.The matching dummy lock is made from the same unpainted 304 stainless steel as the functional mechanical combination lock.

Composite Gate

What Is Composite Gate?

What Are the Benefits of Composite Gate?

Privacy & Comfort

Provides excellent privacy while creating a clean, modern outdoor space.

Weather Resistant

Engineered to resist fading, moisture, insects, and rot.

No Painting or Sealing

No staining, painting, or sealing required for everyday use.

Natural Wood Appearance

Realistic wood textures bring the warmth of timber without the upkeep.

Why Choose Modern Yard for Composite Gate?

Engineering Behind Every Composite Gate

Mechanical Combination Lock

​Choose Your Composite Gate Style

Vertical Composite Gate

Horizontal Composite Gate

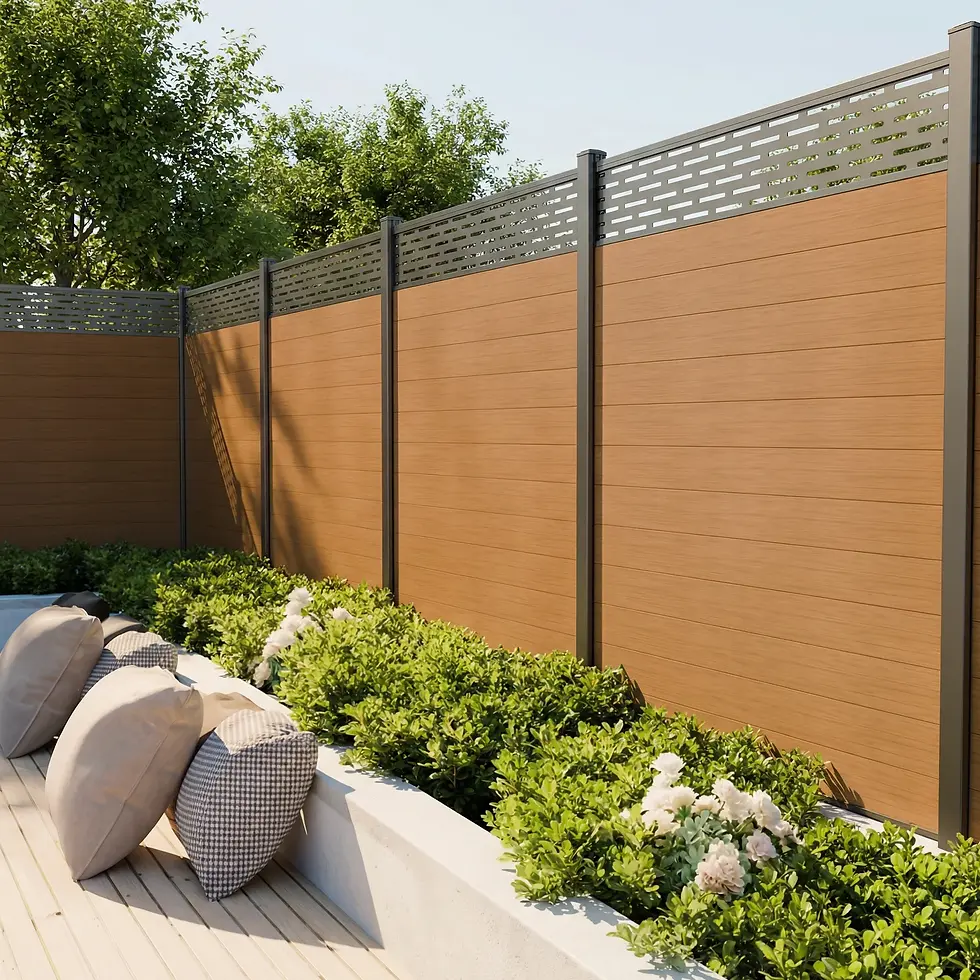

Matching Composite Fencing
