How to Mix Wood-Look, Metal, and Gate Components in One Fence System Without a Mismatched Look

Mixing fence materials usually means accepting a mismatched result. Different suppliers use different post profiles, different hardware finishes, and different dimensional standards, so combining a wood-look panel section with a metal section and a gate from a third source produces a fence that looks assembled rather than designed. A unified fence system solves this at the component level: one post platform, one hardware finish, one design language, regardless of which infill material fills each section. This guide covers how material mixing works in a purpose-built modular system and what's actually possible within Modern Yard's platform.

At a glance

Modern Yard's fence and gate system is built around a single slotted steel post that supports three infill systems: myRedwood composite boards, myFireGuard steel panels, and myAir aluminum slats. All three use the same post, the same gate frame options, and the same hardware finish. Different infill materials can be used in different sections of the same yard without changing the post or the gate. The system tagline from Modern Yard's own documentation: Posts, Infills, Rails, Gates, and Accessories designed to work together.

Why mixing materials usually creates a mismatched result

When fence components come from different suppliers, three visual discontinuities almost always appear.

Post profile inconsistency. Different fence systems use posts of different widths, depths, and surface finishes. When two material systems meet at a corner or transition point, the posts don't match. A narrow aluminum post next to a wider steel post, or a round wood post next to a square steel post, reads as two separate projects joined at the boundary.

Hardware finish variation. Hinges, brackets, screws, and gate hardware from different manufacturers are rarely finished to the same standard. A brushed stainless hinge on one section and a galvanized bracket on the next creates a detail-level inconsistency that's visible at close range even when the panels themselves look similar.

Gate frame and fence panel mismatch. A gate sourced from a different system than the fence almost never matches precisely in panel profile, color, or hardware. The gate is typically the most visible access point on the fence, and a gate that doesn't match the fence draws attention to the seam between the two material systems.

The result is a fence that reads as assembled from parts rather than designed as a system. The individual sections may each look fine on their own, but the transitions between them reveal the mismatched sourcing.

What makes material mixing work visually

Three conditions need to be true for different materials to read as a unified fence rather than a collection of mismatched sections.

One post platform across all materials. If the same post profile handles every infill type, the vertical elements of the fence are identical regardless of what fills the space between them. The eye reads the post rhythm as consistent, which unifies sections with different infill materials.

One hardware finish throughout. Hinges, brackets, gate hardware, and the lock should all share the same finish. In Modern Yard's system, the gate frames, hinges, and lock mount are all part of the same design language, and the steel post finish is consistent across all three infill configurations.

A gate that works with the same infill. The gate frame needs to accept the same infill material as the fence panels so the gate section reads as continuous with the fence rather than as a break in it. A gate that uses the same board, panel, or slat as the adjacent fence section removes the most visible seam in the system.

What material combinations are possible in the Modern Yard system

All three Modern Yard infill systems share the same slotted steel post and the same gate frame options. This makes the following combinations officially supported within a single project.

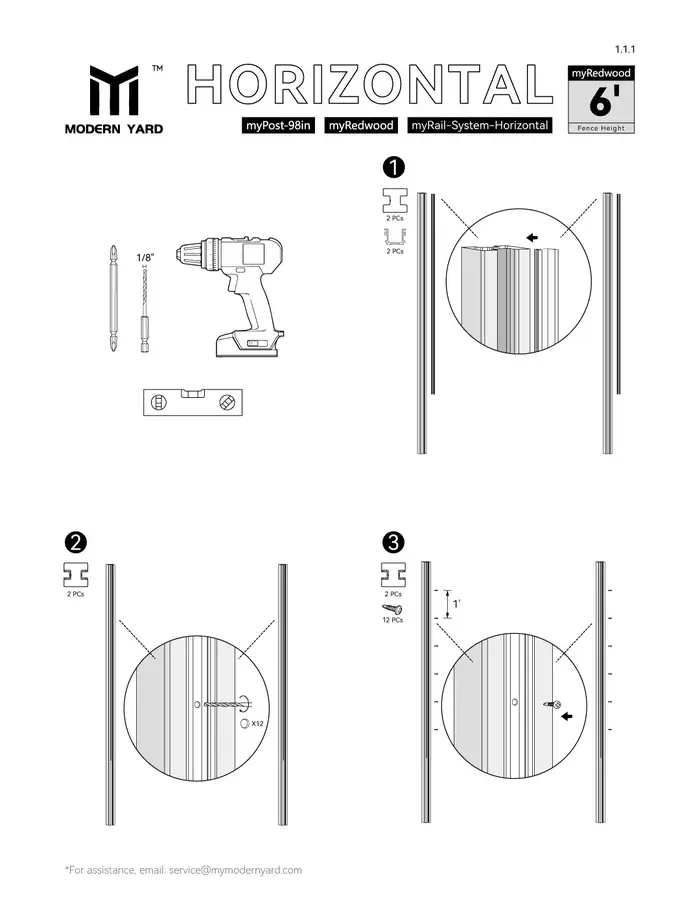

myRedwood composite boards with a matched gate. The myRedwood board installs in horizontal or vertical orientation using the Horizontal or Vertical Rail Set. The same board is compatible with Modern Yard gate frames in both orientations, so the gate matches the fence in material and layout direction. Works for backyards where a natural wood-look aesthetic is the goal and the gate needs to read as part of the fence, not as a separate element.

myFireGuard steel panels with a matched gate. The myFireGuard panel installs vertically using the Vertical Rail Set. The same panel is compatible with Modern Yard gate frames, so the gate and fence present the same finished surface. Appropriate for fire zone projects, HOA properties with material specifications, and any application where ASTM E84 Class A certification is required.

myAir aluminum slats with a matched gate. The myAir slat installs directly into the post slot without a rail set. The gate frame for the myAir system uses the same slat, so the gate continues the horizontal line logic of the fence without interruption. Works for modern architectural contexts where airflow alongside privacy is a design requirement.

myFireGuard panels with myAir slats for height extension. According to Modern Yard's product documentation, FireGuard fencing can be combined with Modern Yard Air aluminum slats to increase total fence height to up to 7 feet. This hybrid configuration allows the FireGuard panel to handle the primary fence height with the aluminum slat system extending the height above it, while maintaining a unified post system throughout.

Different infill materials in different yard sections. Because all three infill systems use the same post, a project can use myRedwood in one section, myAir in another, and a FireGuard gate in a third without changing the post or the gate hardware. The post profile and hardware finish stay consistent across the full perimeter. Each section reads as a design choice rather than a sourcing inconsistency.

Worth confirming. Each infill system requires a specific rail set, or in the case of myAir, no rail set. When planning a mixed-material project, confirm which rail set applies to each section before ordering. The Modern Yard product catalog lists rail set compatibility for each infill system.

How the gate ties the system together

The gate is the most visible part of any fence installation and the place where material mixing most often breaks down visually. In the Modern Yard system, the gate frame is designed to accept the same infill as the adjacent fence section, which means the gate reads as a continuation of the fence rather than as a separate product.

Same infill, same post, same hardware finish. The gate frame uses aluminum construction and accepts myRedwood boards, myFireGuard panels, or myAir slats, matching whichever infill is used in the adjacent fence section. Aluminum hinges are packaged with the gate frame and installed on-site. The myLock-Combination sequential mechanical lock mounts into the pre-drilled position on the gate frame, and its brushed stainless steel finish is consistent with the post system.

Gate sizing works across all infill systems. Two single-door gate frame sizes and a double-door option cover standard access widths for all three infill configurations. The gate frame dimensions don't change based on which infill is used, which simplifies the ordering process for mixed-material projects.

For projects that mix materials across sections, starting with the gate specification and working outward to the adjacent fence sections ensures that the most visible element of the fence is designed first and the surrounding sections are confirmed to match it. Installation guides for each gate frame configuration are at the Modern Yard installation guides page.

Design the system first, then choose the materials

The cleanest approach to a mixed-material fence is to start with the system and let the material choices follow from it. A post platform that works with all three infill options, a gate frame that accepts any infill, and a consistent hardware finish across the full perimeter allow material choices to be driven by design intent rather than constrained by compatibility. Modern Yard's product catalog shows all system components and their compatibility relationships, so the full picture is clear before materials are ordered.
